Name: Three-Phase Electro Motors With Cast-Iron Frame
SKU: 15077
Availability: InStock

Three-Phase Electro Motors With Cast-Iron Frame

$0.00

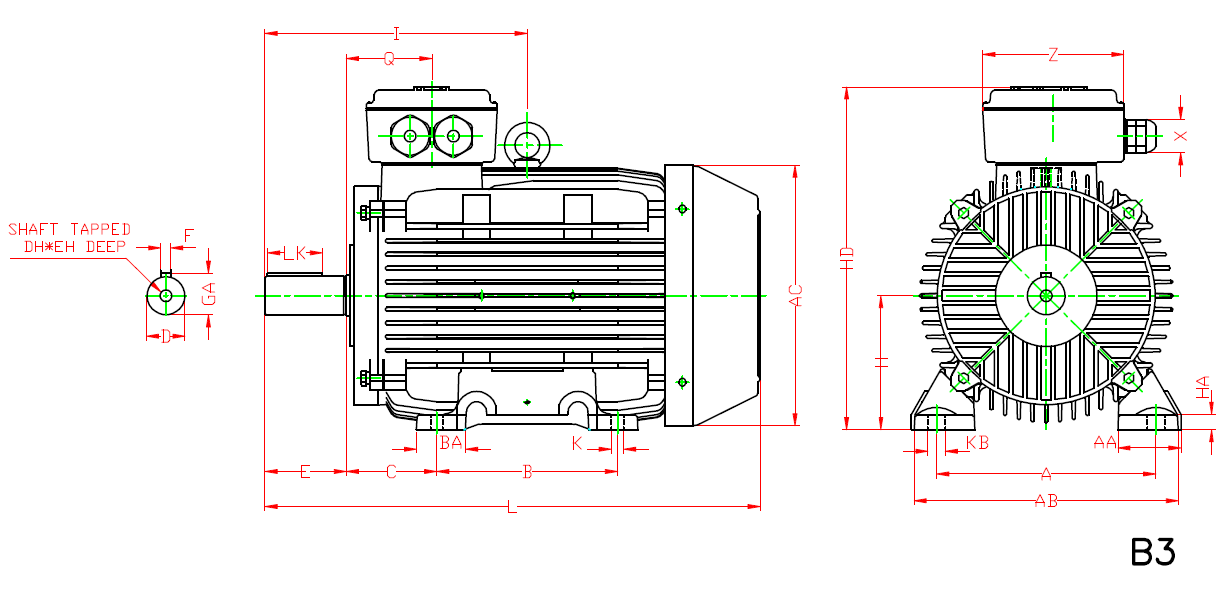

Dimension-Frame Size 100-160 (Foot mounting )

FRAME No. IEC	D	F	GA	DH	EH	E	L	X	I	Q	Z	AC	HA	LK	AA	A	AB	KB	K	BA	B	c	H	HD
I00L	28	8	31	MIO	22	60	367	Pq16	197	67	109	197	14	40	47	160	200	17	12	40.5	140	63	100	268
I00L	28	8	31	MIO	22	60	367	Pq16	112L	67	109	197	14	40	47	160	200	17	12	40.5	140	63	100	268	28	8	31	MIO	22	60	386	Pql6	200	70	109	221	15	40	61	190	235	17	12	40.5	140	70	112	291.5
132M	38	10	41	M12	28	80	487.5	Pq2l	112L	258	84	139	257	15	56	62	216	260	17	12	48.5	178	89	132	28	8	31	MIO	22	60	386	Pql6	200	70	109	221	15	40	61	190	235	17	12	40.5	140	70	112	291.5	337.5
132M	38	10	41	M12	28	80	487.5	Pq2l	160L	258	84	139	257	15	56	62	216	260	17	12	48.5	178	89	132	42	12	45	M16	36	110	629	Pq29	345	111	170	303	20	80	74	254	320	21	14	56	254	108	160	391	337.5

Description
Reviews (0)
Shipping & Delivery

Description

Frame size 100-160

1- Fan cover

2- Cross combination head screw

3- Coolant fan

4- Hexagon head screw

5- CERRATED LOCK WASHER

6- Grease nipple nut

7- Oil seal

8- Spring ring(for balance)

9- Rear bracket

10- Hexagon head screw

11- Spring key

12- Ball-bearing

13- Frame

14- Base

15- Earth screw

16- Earth mark

17- Allen screw for frame fastening

18- Hook

19- Specifications plate

20- Rivet pin

21- Gland

22- Rubber between frame and terminal box

23- Terminal box

24- Allen screw

25- Terminal box

26- Copper connection bridge

27- Cable lug

28- Hexagon nut

29- Plane washer

30- Rubber of terminal box cover

31- Terminal box cover

32- Stator

33- Socket Allen screw

34- Rotor with shaft

35- Shaft head key

36- Front bracket

Frame size 180-400

1- Fan cover	14- Inner cover	27- Terminal box
2- Cross combination head screw	15- Frame	28- Copper connection bridge
3- Coolant fan	16- Base	29- Cable lug
4- Hexagon head screw	17- Earth screw	30- Hexagon nut
5- CERRATED LOCK WASHER	18- Earth mark	31- Plane washer
6- Outer cover	19- Allen screw for frame fastening	32- Rubber of terminal box cover
7- Oil seal	20- Hook	33- Terminal box cover
8- Spring ring(for balance)	21- Specifications plate	34- Stator
9- Grease nipple connector	22- Rivet pin	35- Socket Allen screw
10- Rear bracket	23- Gland	36- Rotor with shaft
11- Hexagon head screw	24- Rubber between frame and terminal box	37- Shaft head key
12- Spring key	25- Terminal box	38- Front bracket
13- Ball-bearing	26- Allen screw	39- Grease nipple nut

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Three-Phase Electro Motors With Cast-Iron Frame”

Shipping & Delivery
