Technical Data
Explosionproof Lights
| type | EL |
| Application | Emergency |
| Marking | II 2G Ex d IIC T6 Gb II 2D Ex tb IIIC T 85°C Db |
| Ambient temperature (℃) | -20 to 55 °C |
| EU-Type Examination Certificate | ECM 19 ATEX 5851 X |
| ATEX Certificate | ECM 19 ATEX-QS 6210 |
| Degree of protection | IP67 |
| Cable entries | 2xM25 or 2xM20 |
| dimension | Size 3 |
| Enclosure Color | RAL 7037 |
| Enclosure Material | Copper free aluminum |
| Glass | Borosilicate glass |
| power factor | 0.95 |
| Voltage | 230 V AC |
| Frequency (Hz) | 50/60 Hz |
| LED luminaire | LEDs |
| Connecting terminals | L,N,PE :2×2.5mm2 |
| Protection class against electrical shock | I |
| Charging duration | 24h |
| Rated operating duration | 3h |
| Emergency type | Maintained |
| luminous flux lm | 930 lm |
Global standards
| IEC 60598-1 | Luminaires-General requirements and tests |
| IEC 60079-0 | Equipment for explosive atmospheres-IEC 60079-0 |
| IEC 60079-1 | Equipment for explosive atmospheres-IEC IEC 60079-1 |
| IEC 60079-31 | Equipment for explosive atmospheres -IEC 60079-31 |
| IEC 60598-2-22 | Equipment for explosive atmospheres-IEC 60598-2-22 |
| IEC 60529 | Equipment for explosive atmospheres-IEC 60529 |
Information

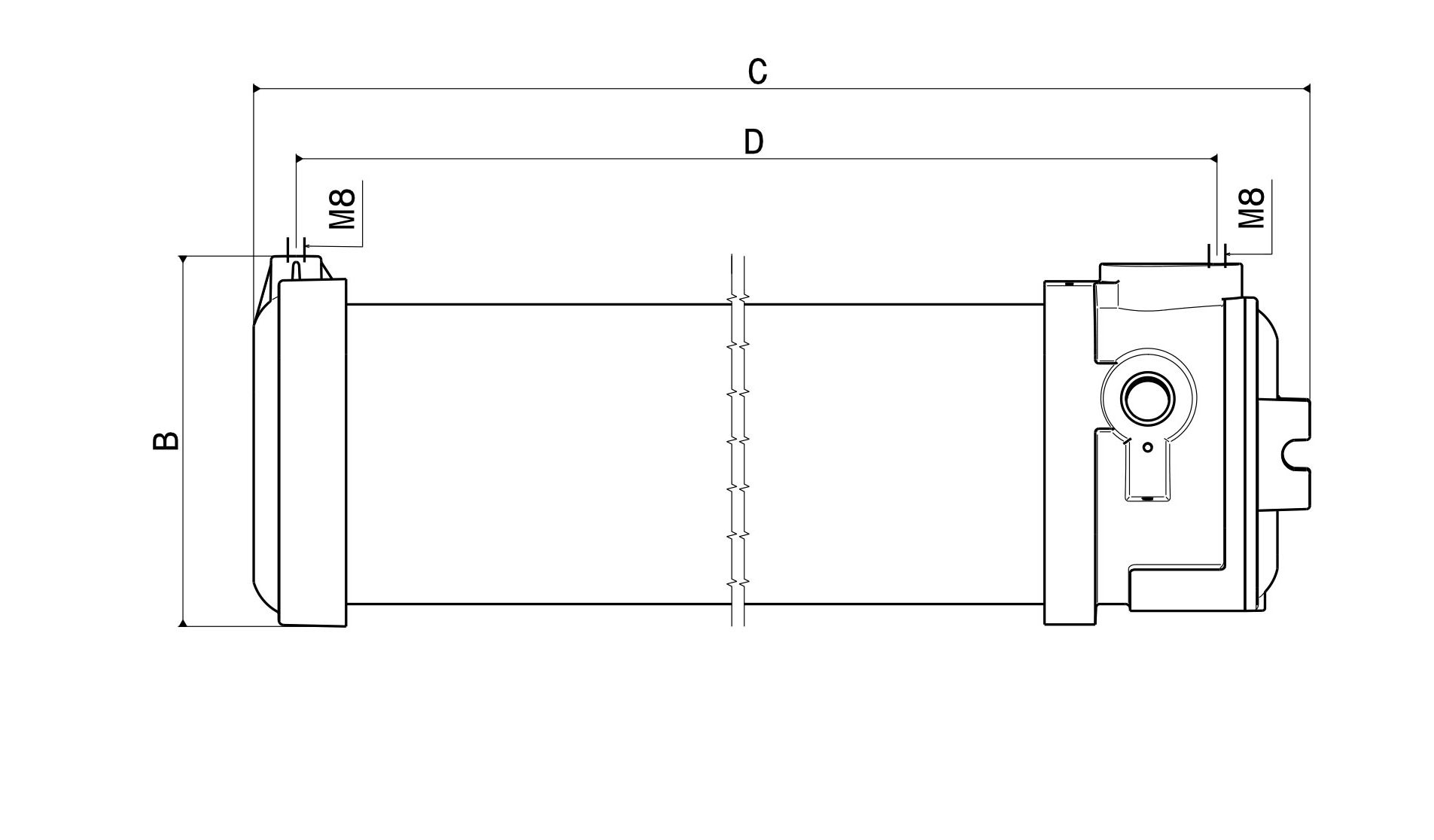

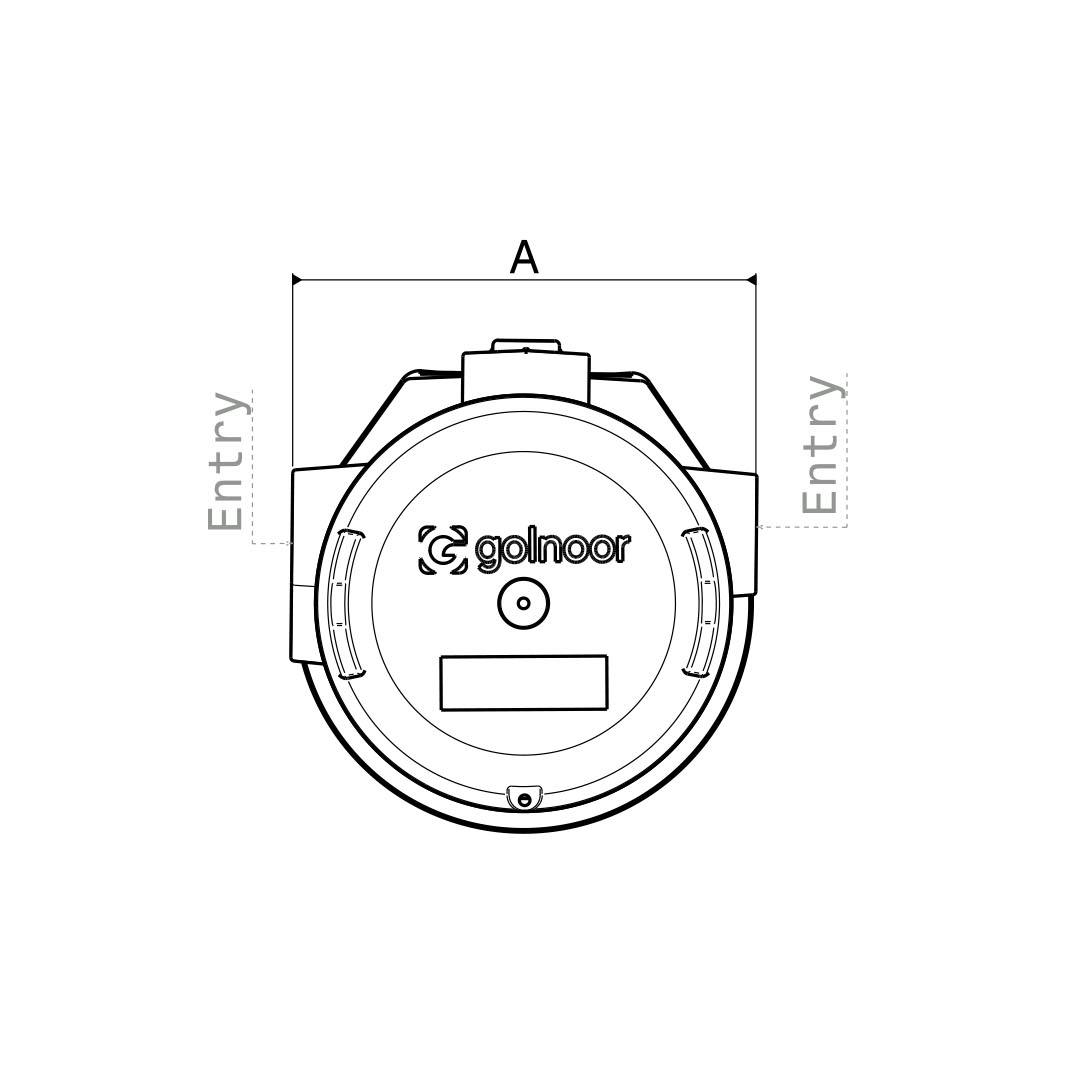

dimension

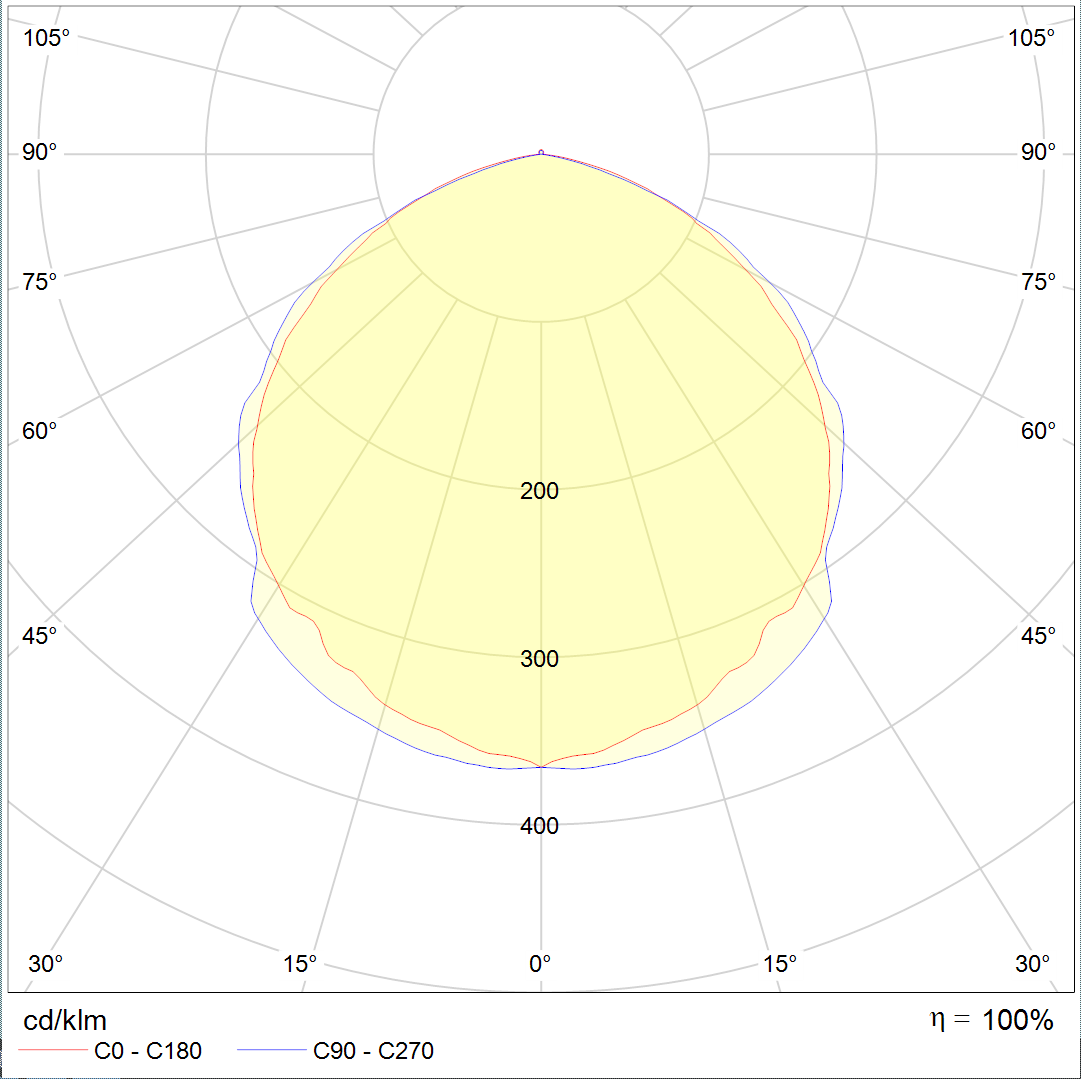

photometric data
